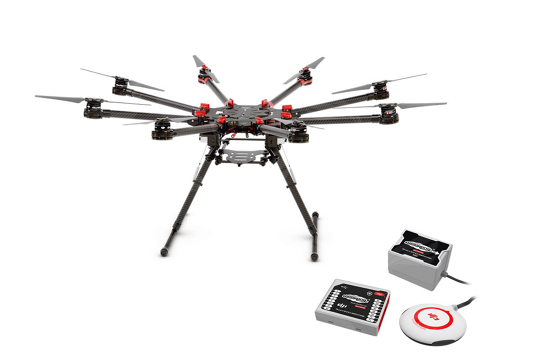

DJI S1000+ & WKM

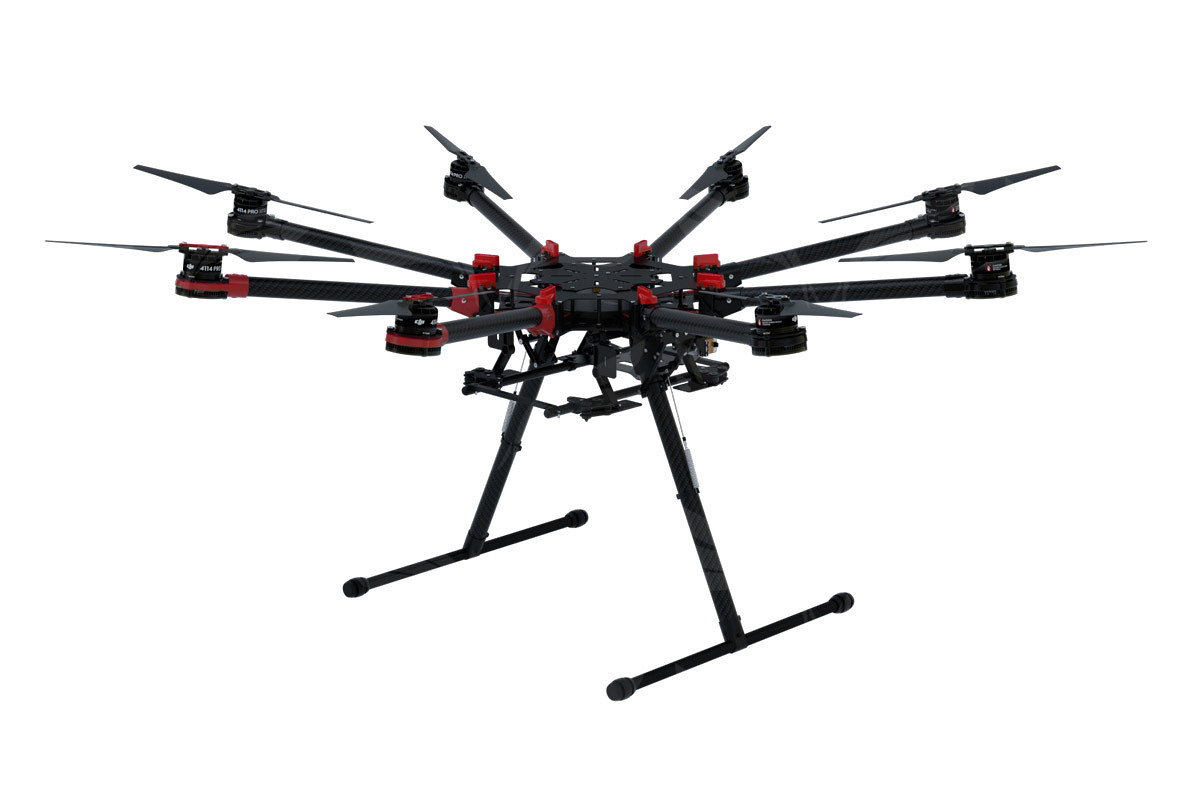

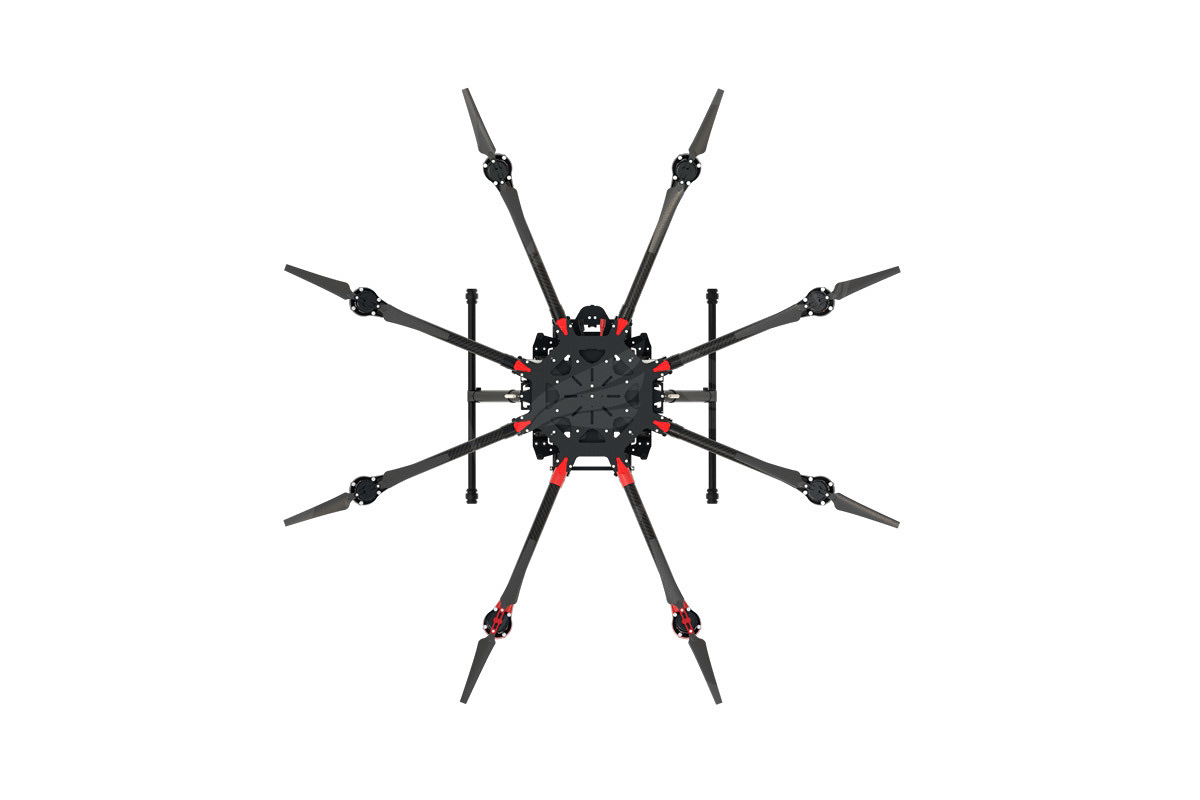

Spreading Wings S1000+

• LARGE CARRYING CAPACITY, STRONG AND STABLE
  Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.
• HIGHLY PORTABLE, WITH FOLDABLE ARMS
  With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.
• REMOVABLE UPPER CENTER BOARD
  The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Lightbridge, or any other accessories is faster and easier than ever before.
  This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
• NEW POWER DISTRIBUTION SYSTEM
  A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
• SPARKPROOF PLUG
  Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
• PROFESSIONAL QUALITY
  Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.
• WIDE RANGE OF SHOOTING ANGLES
  Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.
• COMPATIBLE WITH ZENMUSE GIMBALS
  Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.
• REDUCED VIBRATIONS, CLEARER FOOTAGE
  The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
• GREATER POWER
  A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.
  Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
• INNOVATIVE ARM DESIGN
  Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.

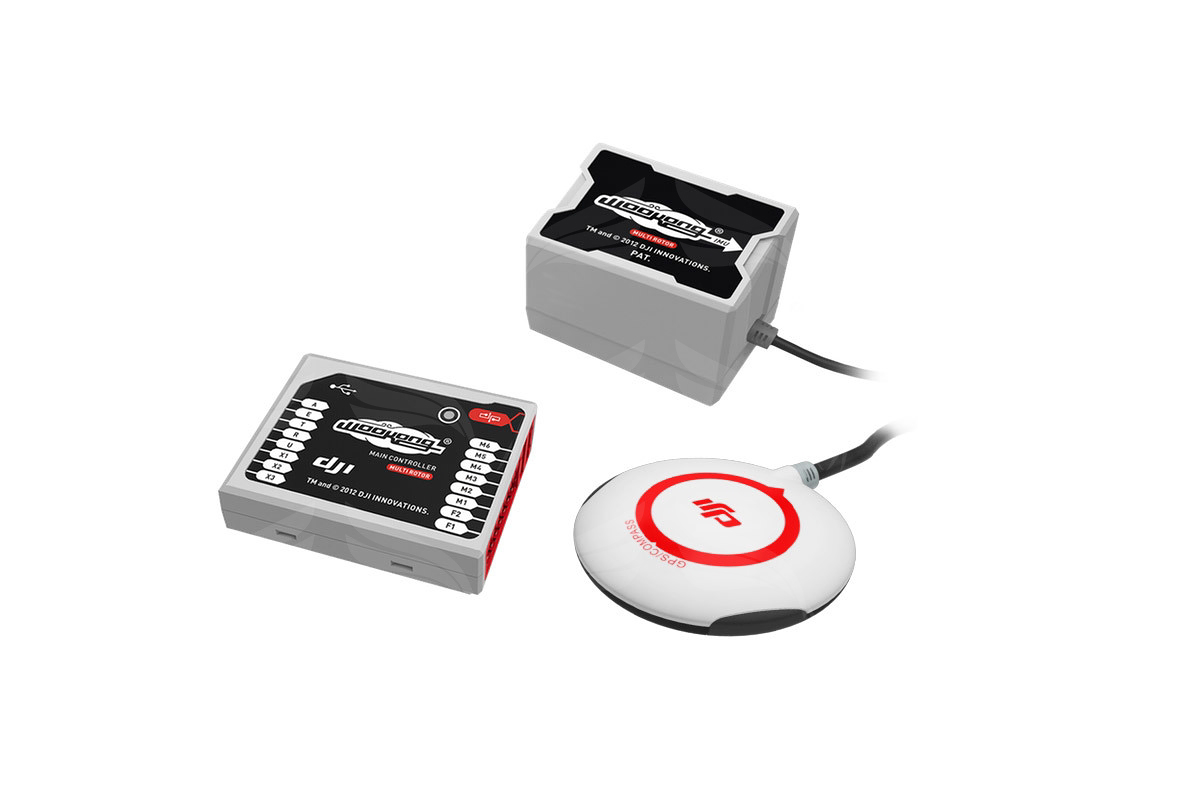

WooKong-M

• Advanced Stabilization Controller for Multi-Rotor Platforms (S900/S1000+)
• Supports 9 Different Multi-Rotor Configurations and Features a Customized Motor Mixer
• Precise GPS for Position and Altitude Stabilization
• Multiple Flight Control Modes and Intelligent Switching
• Intelligent Orientation Control (IOC) and Point of Interest (POI)
• Supports General, PPM, and S-Bus Receivers
• Supports Ground Control Station (GCS) for iPad
• Enhanced Failsafe Features, Including Auto Return-to-Home
• Single Motor Failure Protection
• Two Levels of Low Voltage Protection and Auto Return-to-Home
• Built-In Motor Arm/Disarm Mode
• Compatible with DJI Video Downlink, iOSD, Ground Station, Zenmuse Gimbals, and Future Products
• New Assistant Software for Smartphone
