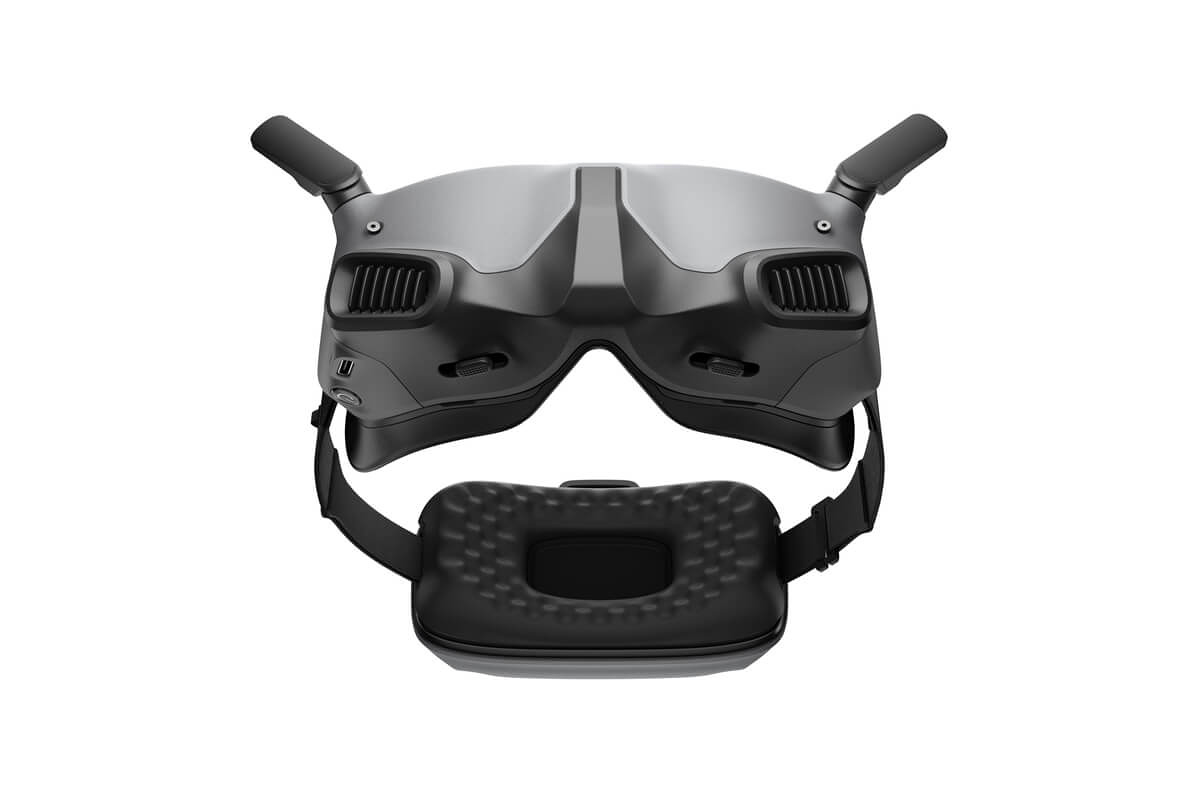

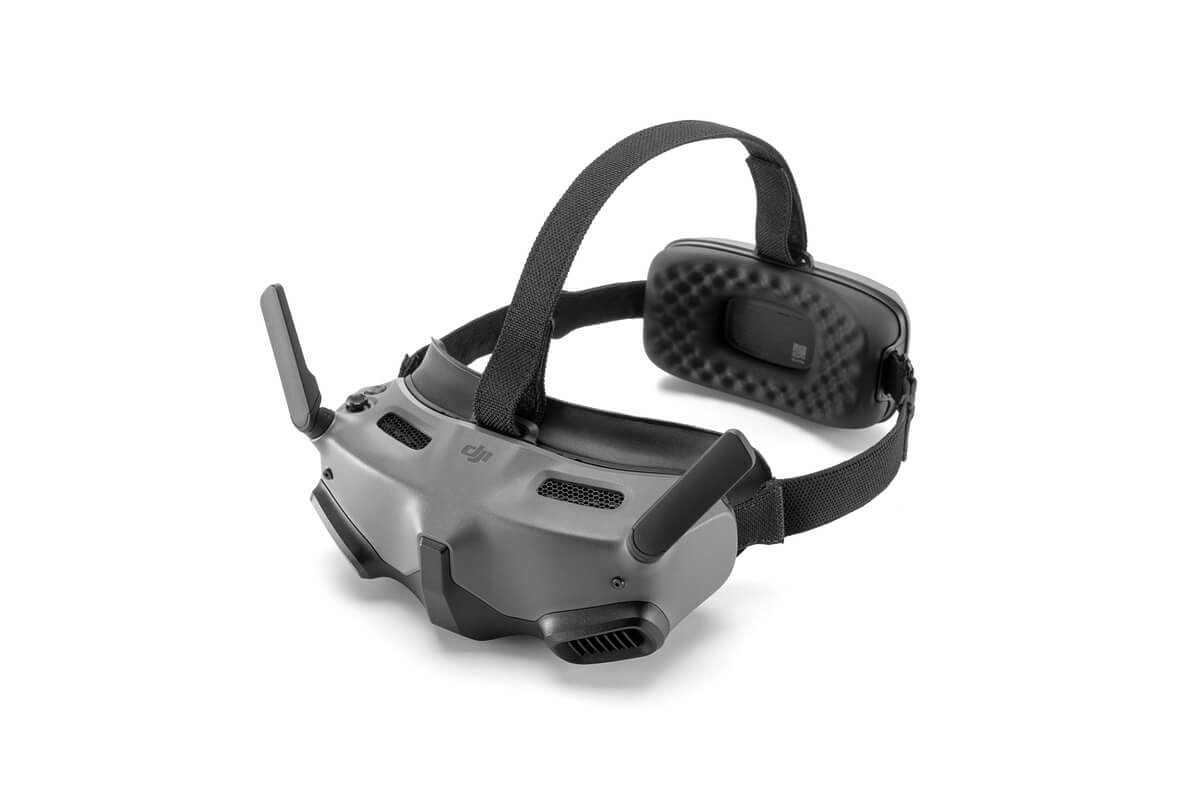

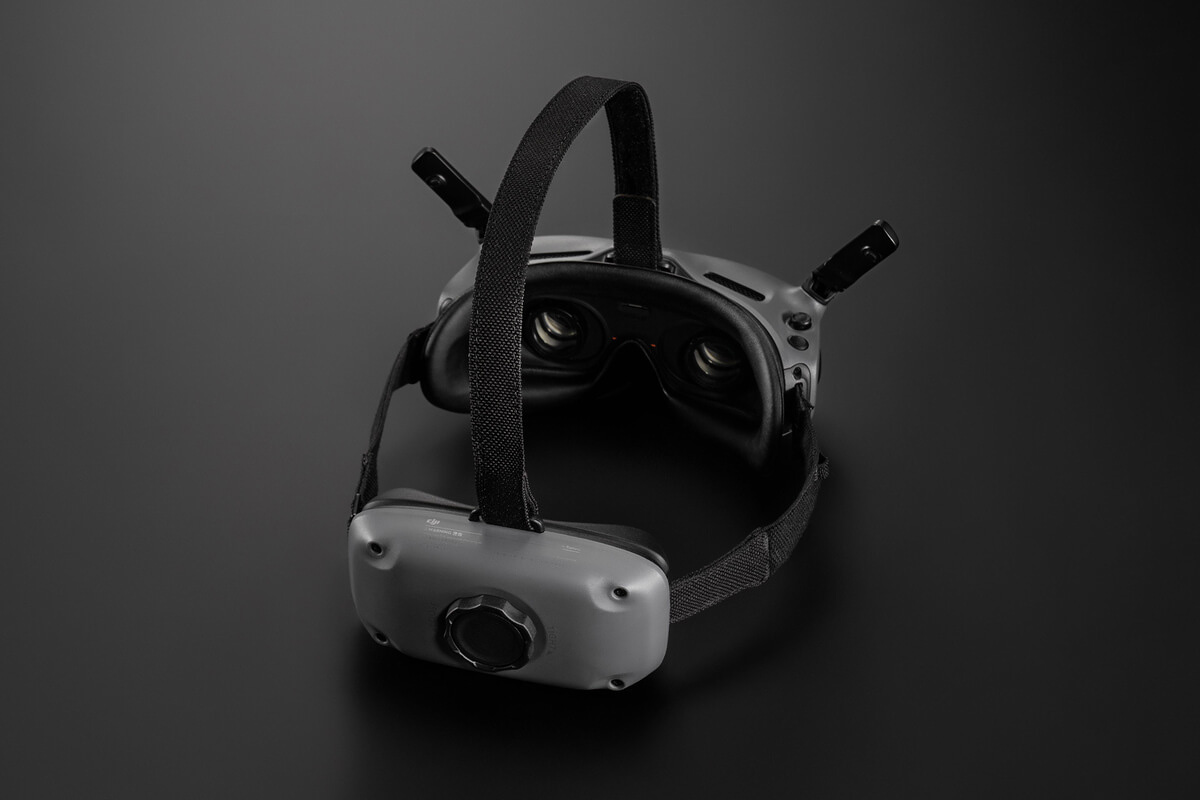

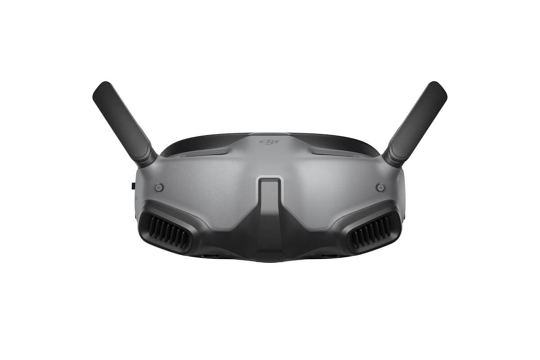

DJI Goggles Integra
 |  |  | ![DJI O3+ vaizdo perdavimas [1]](https://www.promaksa.lt/img/cms/PRODUCTS/DJI/DJI_Goggles/DJI_Goggles_05.svg) |  |
Lengvas ir nešiojamas | Integruotas dizainas | Micro-OLED ekranai | DJI O3+ vaizdo perdavimas | HD mažas vėlavimas |
Combined for Convenience
The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off.
The built-in battery headband feels lightweight, balanced, and comfortable to wear.
DJI Goggles Integra can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day.
Total Weight
Approx. 410 g
Antenna Design
Foldable
Operating Time
Two hours [3]
HD Display
DJI Goggles Integra is equipped with two HD Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. The high screen refresh rate presents the fun of flight in a smoother and more fantastic way.
Display Technology
Micro-OLED
Screen Resolution
1080p
Max Brightness
700 nits
Max Screen Refresh Rate
100 Hz [4]
Supported Codec Formats
H.264 and H.265
TÜV Rheinland Low Blue Light Certification
DJI Goggles Integra presents HD display quality while protecting your eyes with a comfortable experience.
Ultra-Low Latency, Smooth and Stable Video Transmission
DJI Goggles Integra is equipped with DJI O3+ video transmission, boasting latency as low as 30 ms. [5] The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid, immersive HD viewing experience with minimal interference. [6]
Lowest Video Transmission Latency
30 ms
Auto Frequency Band Selection
2.4 GHz or 5.8 GHz
New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. [7] The tracking effect of the goggles display frame aligning with the video transmission frame is optimized to cut down video transmission latency and fluctuations. Viewing footage with DJI Goggles Integra is also easier on the eyes, effectively reducing visual fatigue and dizziness.
New Ways to Enjoy Aerial Photography
DJI Goggles Integra is compatible with some camera drones, such as DJI Mavic 3 Pro, DJI Mavic 3 Pro Cine, DJI Mavic 3, DJI Mavic 3 Cine, DJI Mavic 3 Classic, and DJI Mini 3 Pro. Now you can explore more creative possibilities while experiencing the joy of flight.
Share the Sky
Connect DJI Goggles Integra with the DJI Fly app on your smartphone to display a real-time camera view on your goggles and smartphone simultaneously. Share the view with friends to enjoy stunning and immersive flight together.
- Lightweight and Portable
- Integrated Design
- Micro-OLED Screens
- DJI O3+ Video Transmission
- HD Low-Latency
Video
Goggles
Model
- RCDS13
Weight
- Approx. 410 g (battery included)
Dimensions (L×W×H)
- With antennas folded: 170×104×75 mm
With antennas unfolded: 205×104×104 mm
Screen Size (single screen)
- 0.49-inch
Resolution (single screen)
- 1920×1080
Refresh Rate
- Up to 100 Hz
IPD Range
- 56-72 mm
FOV (single screen)
- 44°
Video Recording Format
- MOV
Supported Video Playback Formats
- MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)
Operating Temperature
- -10° to 40° C (14° to 104° F)
Power Input
- Built-in battery
Supported SD Cards
- microSD (up to 512 GB)
Recommended microSD Cards
- SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Lexar 1066x U3 V30 A2 64GB microSDXC
Lexar 1066x U3 V30 A2 128GB microSDXC
Lexar 1066x U3 V30 A2 256GB microSDXC
Lexar 1066x U3 V30 A2 512GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC
Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung EVO Plus U3 V30 A2 512GB microSDXC
Video Transmission
Video Transmission
- When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
DJI Avata: O3+
Operating Frequency
- 2.4000-2.4835 GHz
5.725-5.850 GHz
The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
Transmitter Power (EIRP)
- 2.4000-2.4835 GHz:
< 30 dBm (FCC)
< 20 dBm (CE/SRRC/MIC/KC)
5.725-5.850 GHz:
< 30 dBm (FCC)
< 23 dBm (SRRC)
< 14 dBm (CE/KC)
Transmission Latency
- 1080p/100fps: as low as 30 ms
1080p/60fps: as low as 40 ms
Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.
Max Transmission Distance
- When used with DJI Avata or DJI O3 Air Unit, DJI Goggles Integra can achieve the following max video transmission range:
10 km (FCC), 2 km (CE), 6 km (SRRC)
Max Video Bitrate
- 50 Mbps
Measured in an open outdoor environment without interference. Actual data varies with operating environment.
Battery
Weight
- Approx. 185 g (headband included)
Dimensions (L×W×H)
- 120×51×71 mm
Capacity
- 2450 mAh
Voltage
- 5.6-8.4 V
Type
- Li-ion
Chemical System
- LiNiMnCoO2
Energy
- 17.64 Wh
Charging Temperature
- 5° to 45° C (41° to 113° F)
Max Charging Power
- 15 W (charging when powered off)
Operating Time
- Approx. 2 hours
Measured with an ambient temperature of 25° C (77° F), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.

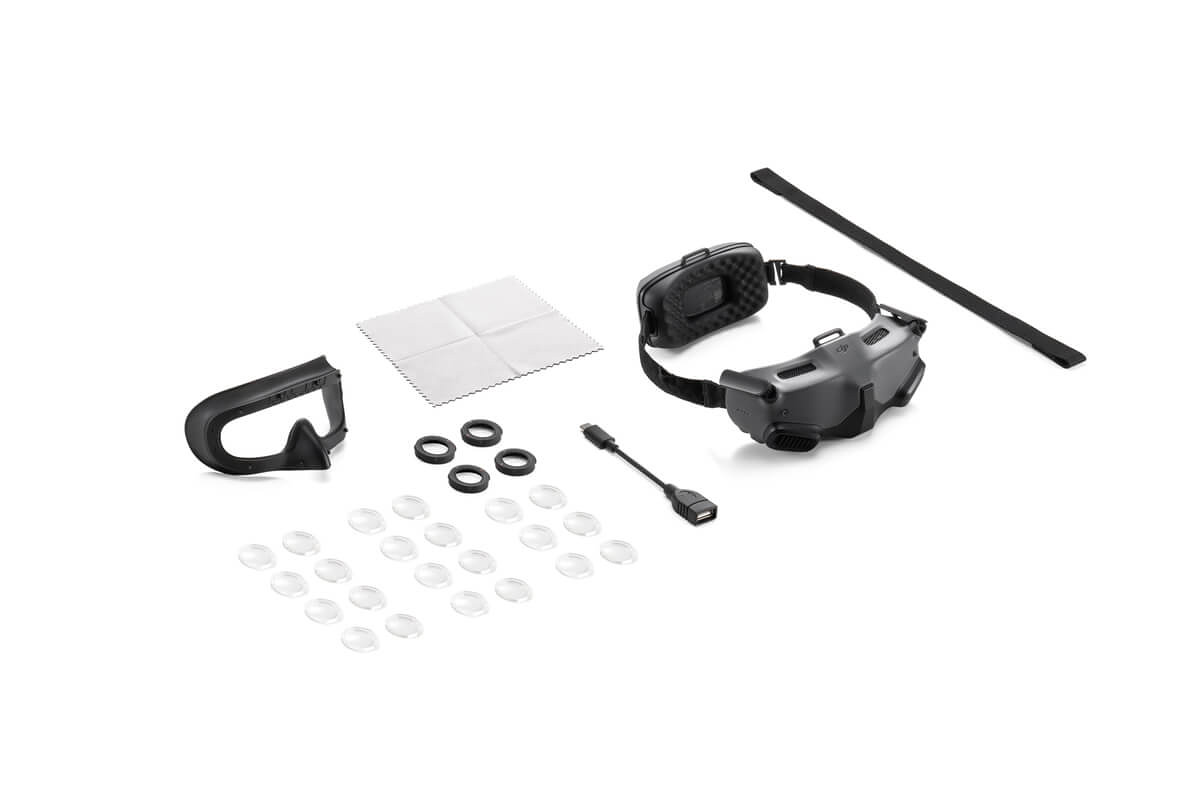

DJI Goggles Integra × 1
USB-C OTG Cable × 1
DJI Goggles Integra Eyeglass Frames (Pair) × 2
DJI Goggles Integra Corrective Lenses (Pair) × 11
DJI Goggles Integra Top Headband × 1
Lens Cleaning Cloth × 1
