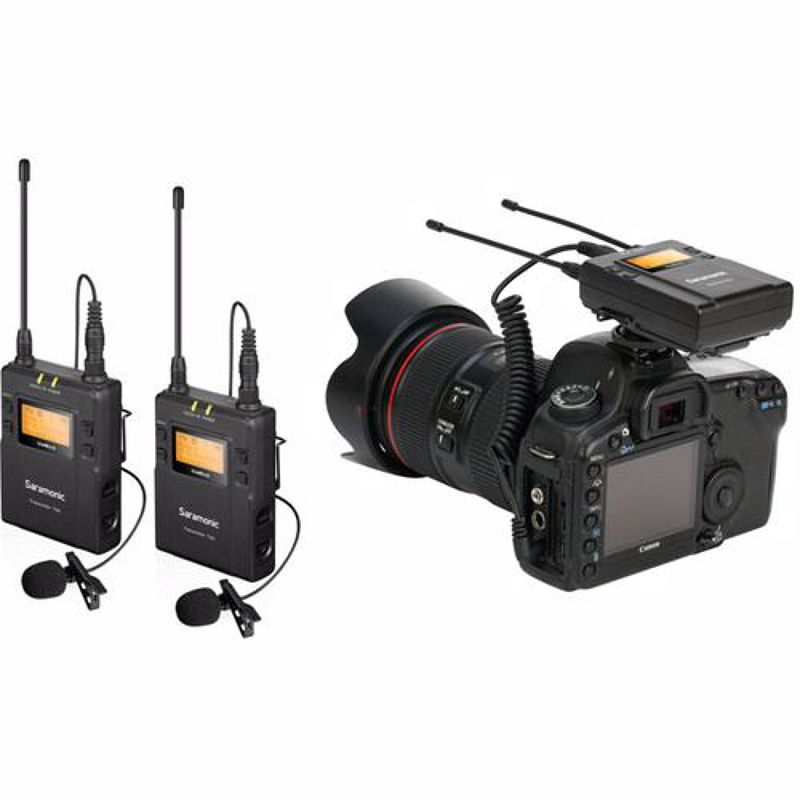

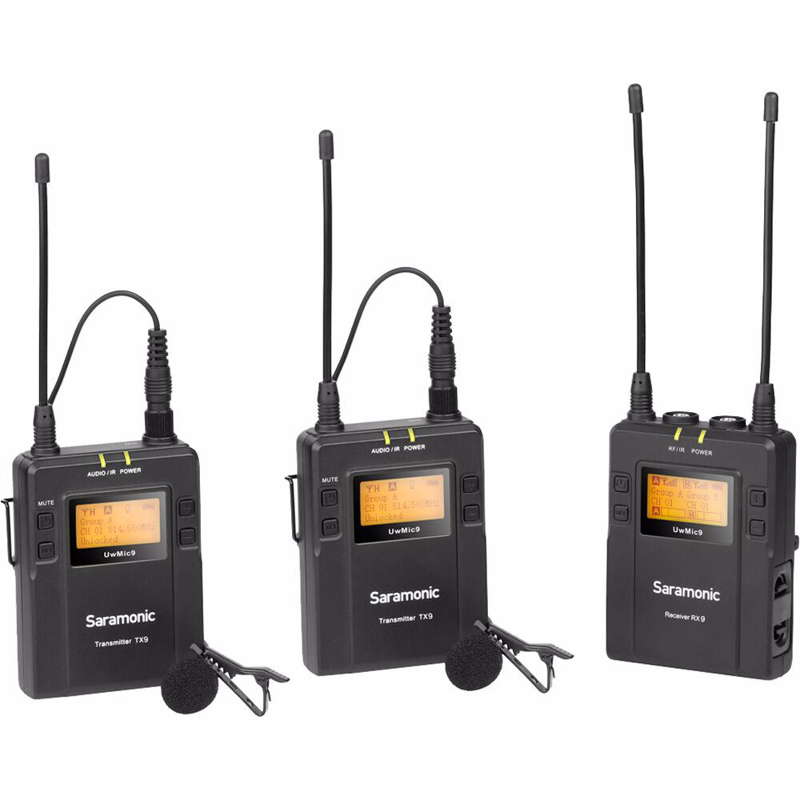

Wireless microphone and receiver kit for system cameras, including two transmitters and one receiver.
Technical info
Specifications RX9 Receiver
- Channels: 96 selectable channels in 2 groups (A and B)
- Wireless Frequency Range: 514MHz - 596MHz
- Oscillator Type: PLL synthesizer
- Output: Locking 3.5mm TRS mini-jack
- Antenna: 1/4 λ wire antenna
- Audio Output Level: -60dBV
- Headphone Output Level: 30mW (16 ohm)
- Sensitivity: -95dBm
- Signal to Noise Ratio: 70dB or more
- Voice Delay: 12ms
- Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
- Frequency Response: 40Hz to 18kHz (±3dB)
- Distortion: 0.5% or less
- Spur Suppression: -60dB
- Batteries: 2 LR6/AA size batteries
- Dimensions: 170.9 x 63.5 x 30.0mm
- Weight: 218.7g (without batteries)
Specifications TX9 Transmitters
- Channels: 96 selectable channels in 2 groups (A and B)
- Wireless Frequency Range: 514MHz - 596MHz
- Oscillator Type: PLL synthesizer
- Input: Locking 3.5mm TRS mini-jack
- Reference audio input level: –60dBV (MIC input 0dB attenuation)
- Antenna: 1/4 λ wire antenna
- Signal to Noise Ratio: 70dB or more
- Voice Delay: 12ms
- Reference Deviation: ±5 kHz (-60dBV, 1kHz input)
- Frequency Response: 40Hz to 18kHz (±3dB)
- Distortion: 0.5% or less
- Spur Suppression: -60 B
- Batteries: 2 LR6/AA size batteries
- Dimensions: 170.9 x 63.5 x 30.0mm
- Weight: 211.4g (without batteries)

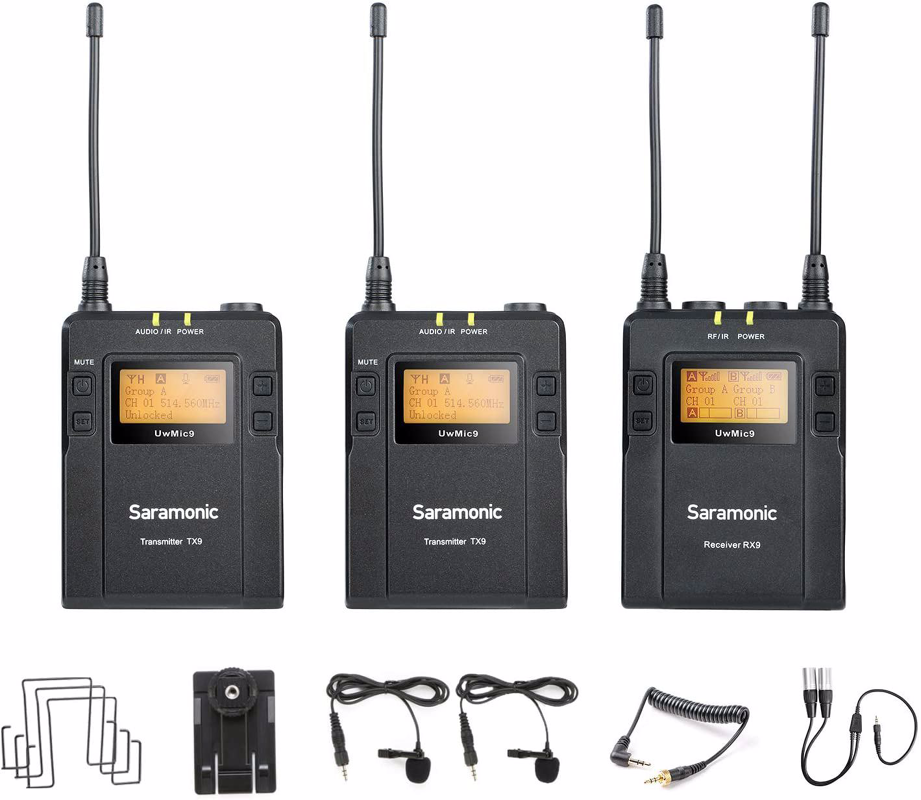

Box contains
- 1 x RX9 dual-channel portable UHF wireless receiver
- 2 x TX9 UHF wireless belt-pack transmitters

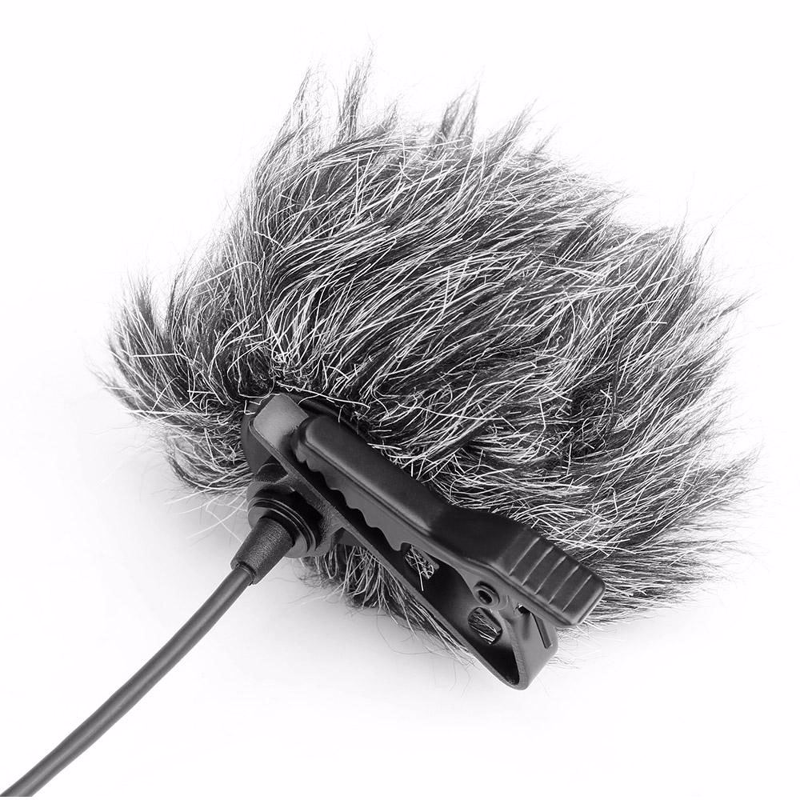

- 2 x SR-M1 omnidirectional lavalier microphones
- 2 x Alligator-style lavalier mic clips
- 1 x Short coiled locking mini-plug output cable with gold-plated connectors
- 1 x Short locking gold-plated mini-plug to XLR male output cable
- 1 x Camera shoe mount with an integrated 1/4 20 tripod thread
- 3 x Removable belt clips
- 3 x SR-UMBC1 battery compartments
- 1 x Printed manual
- 1 x Warranty card
