Saramonic UwMic9 TX9 Transmitter For UwMic9 System

Technical info

• Channels: 96 selectable channels in 2 groups (A and B)
• Wireless Frequency Range: 514 MHz - 596 MHz
• Oscillator Type: PLL synthesizer
• Input: Locking 1/8” (3.5mm) TRS mini-jack
• Reference audio input level: –60 dBV (MIC input, 0 dB attenuation)
• Antenna: 1/4 λwire antenna
• Signal to Noise Ratio: 70 dB or more
• Voice Delay: 12 ms
• Reference Deviation: +/- 5 kHz (-60 dBV, 1 kHz input)
• Frequency Response: 40 Hz to 18 kHz (+/- 3dB)
• Distortion: 0.5% or less
• Spur Suppression: -60 dB
• Batteries: 2 LR6/AA size batteries
• Dimensions: 6.73 x 2.5 x 1.18” (170.9 x 63.5 x 30.0mm)
• Weight: 7.46 oz (211.4g) (without batteries)

Box contains

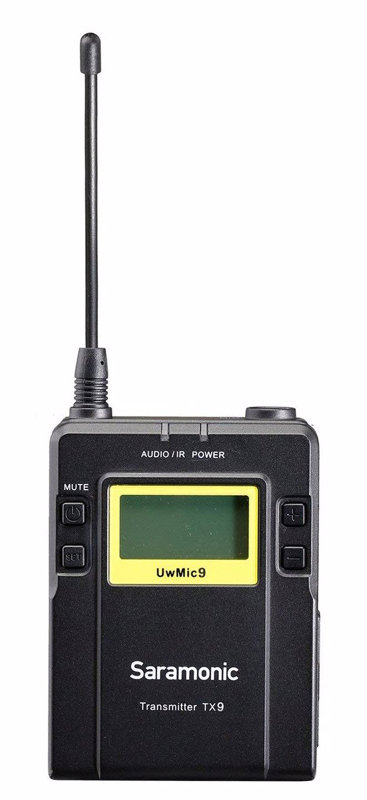

• 1 x TX9 belt-pack transmitter

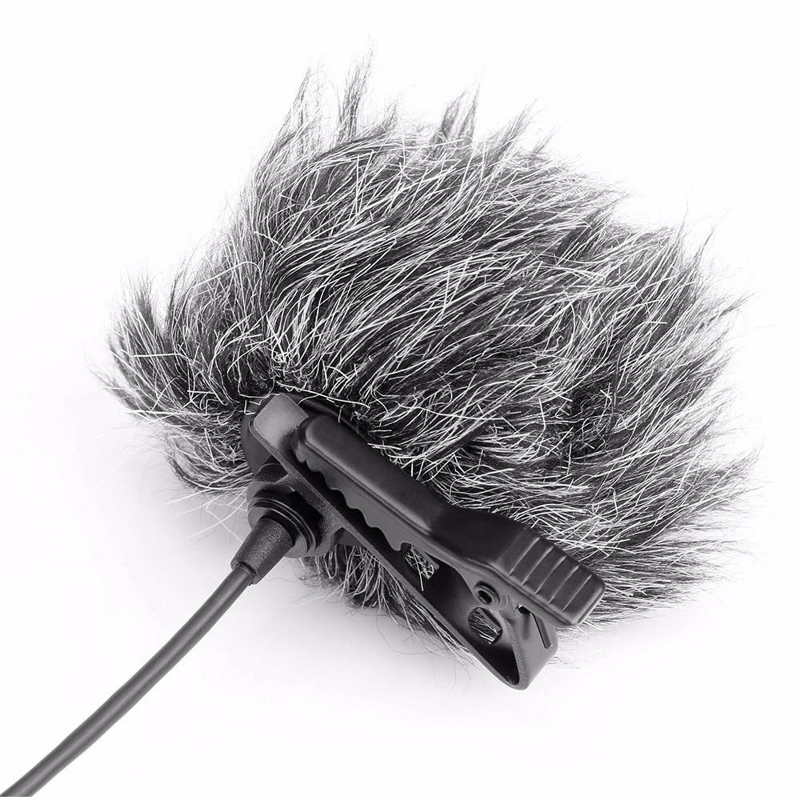

• 1 x SR-M1 omnidirectional lavalier mic
• 1 x Alligator-style lavalier mic clip
• 1 x Fitted foam windscreen
• 1 x Belt clip
• 1 x SR-UMBC1 battery compartment
• 1 x Printed user manual
• 1 x Warranty card
