More info

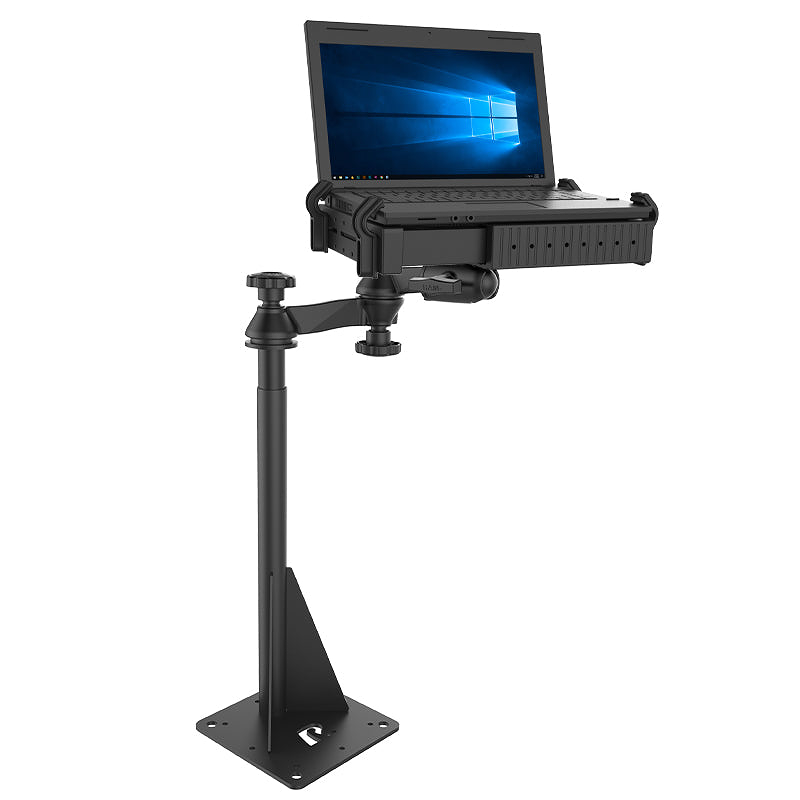

This universal drill-down laptop kit installs quickly and easily into most vehicles by using self tapping screws, or by drilling and then bolting down the mount base to the vehicle.
This configuration provides a telescoping feature that ranges from 12 to 18 inches.

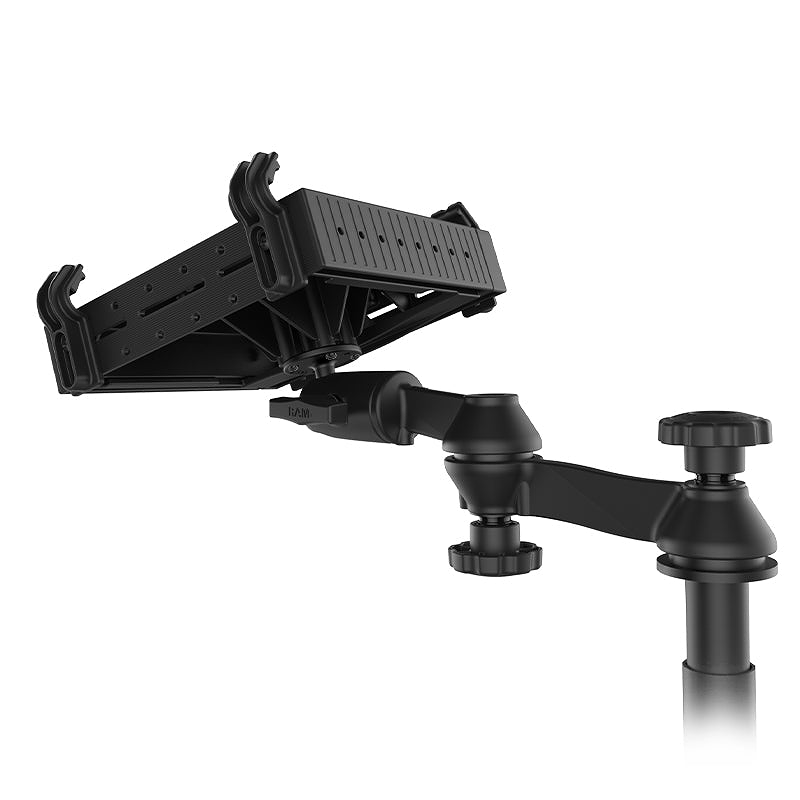

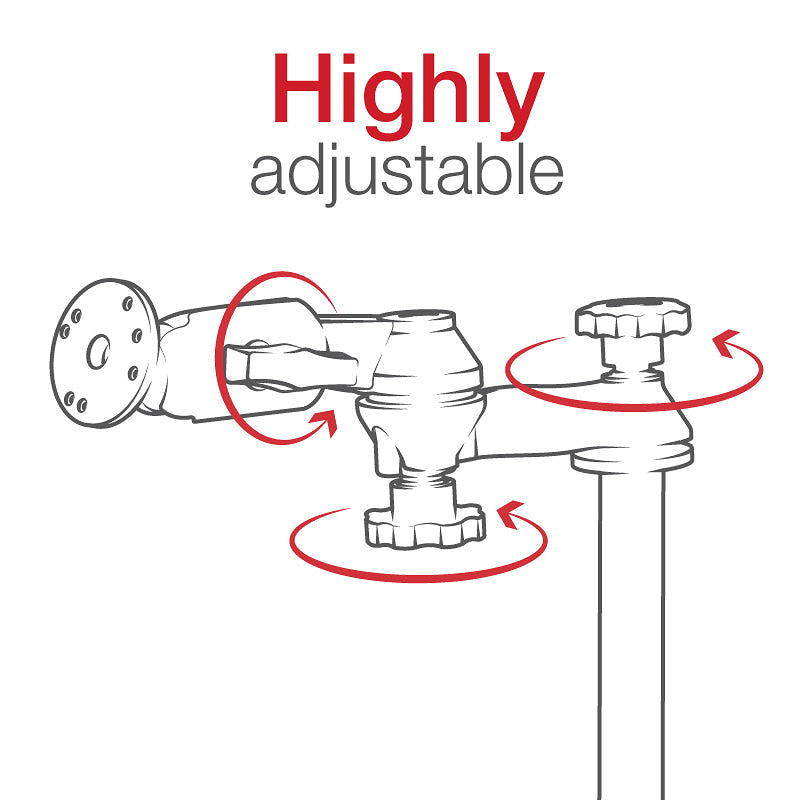

Dual swing arms provide articulation and 12 inches of reach for passenger and driver access to the mounted device. Patented rubber ball and socket joint provides additional adjustment as well as shock and vibration isolation.

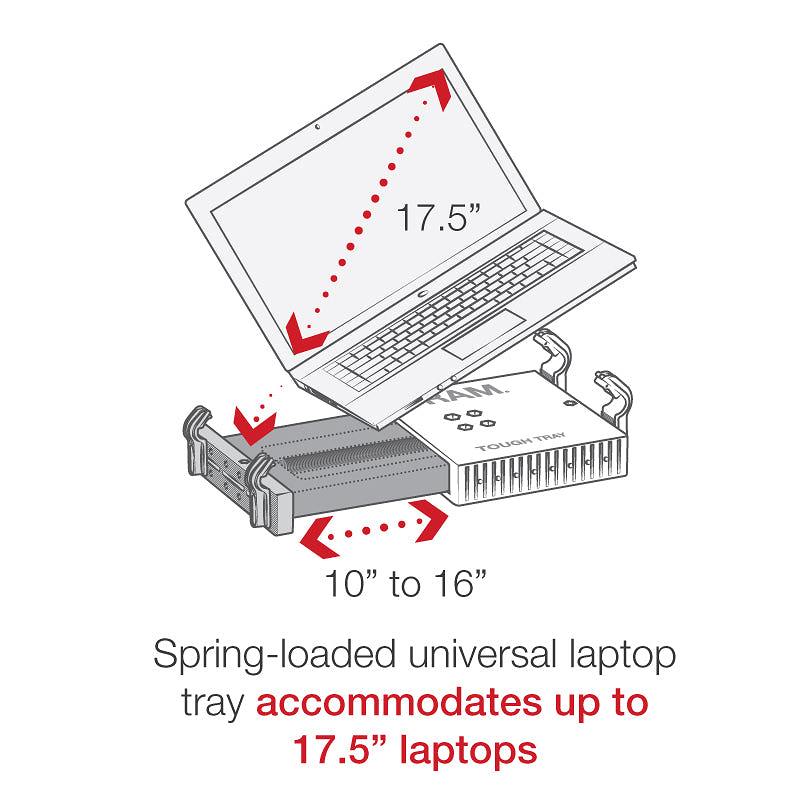

The RAM Tough-Tray™ is spring loaded to accommodate 10" to 16" wide laptops (17" wide screens).
The tray features four adjustable retaining arms with rubber grip feature. These arms can be moved both vertically and horizontally. This allows for a custom fit for varying thicknesses of laptops and the freedom of not blocking ports or drives. A screen support and USB light are also available to accessorize the tray.
Technical info
- Product dimensions: minimum height: 63,6 cm, maximum height: 81,4 cm
- Tray dimensions: Width range: 25 cm - 41 cm, Side panel clip height: 1,27 cm - 4,45 cm, Tray depth: 25 cm, Tray thickness: 5,4 cm
- Hole pattern: see drawing
- Panel size: 20 cm x 20 cm
- Ball size: size C (3,8 cm)
- Materials: powder-coated steel, marine-grade aluminium, high-strength composite
- Packaging type : Box
- Weight : 7,7 kg
Box contains

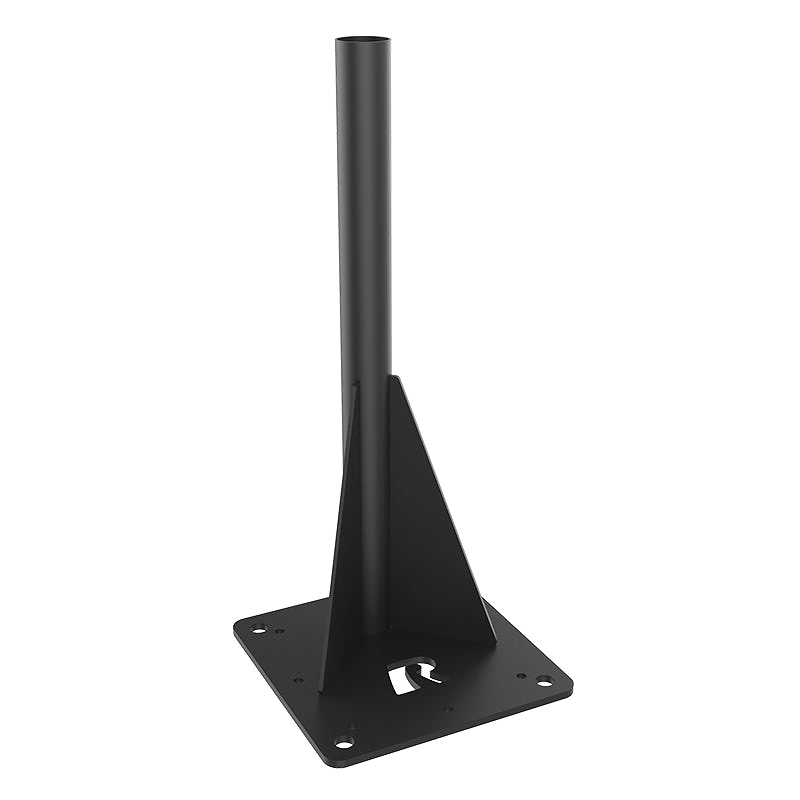

RAM® Universal Drill-Down Vehicle Base with Lower Pole
RAM® 8" Upper Pole with Double Swing Arms & Round Plate
RAM® Tough-Tray™ Spring Loaded Laptop Holder
- Assembly Hardware
- Instructions: Tough-Tray Assembly Guide, Laptop Mount Drill Seat Bases Installation Guide 122 Series, Upper Tele-Pole Assembly Guide
