Overview |

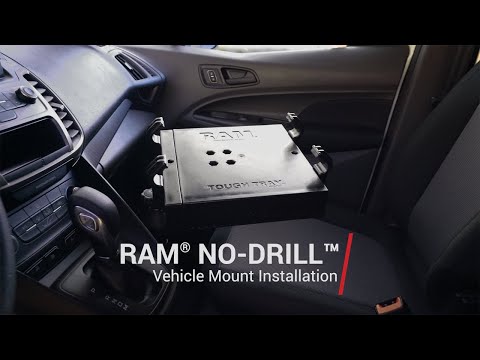

The included RAM Tough-Tray™ is spring loaded to accommodate 10" to 17" laptops. The tray features four adjustable retaining arms with rubber grips. These arms can be moved both vertically and horizontally, enabling a custom fit for varying thicknesses of laptops and access to ports or drives. A screen support and USB light are also available to accessorize the tray. Hole patterns on perimeter of tray facilitate the mounting of additional RAM systems to support phones or other electronics. Custom, RAM® No-Drill™ mounting base offers lowest profile in the industry. Universal adjustable base accomodates a wide range of vehicles (see Additional Information). Patented ball and socket mounting system offers shock and vibration damping. Dual articulating swing arm offers the simplest and most comfortable adjustment points in the industry. Backed by a lifetime warranty. |
---|---|
Hardware included | Assembly Hardware, Stabilizer Foot |
Product dimensions | Height Range: 18.25" - 24" |
Tray dimensions | Width Range: 10" - 16" Side Arm Clamp Height: .5" - 1.75" Tray Depth: 10" Tray Thickness: 2.125" |
Hole pattern | Seat Bolt Distance: 9"-18.875" center to center |
Ball size | C Size (1.5") |
Materials | Powder coated steel Marine grade-aluminum High strength composite |
Packaging type | Box |
Weight | 14.0 lb |
Additional Information | Will this mount install in your vehicle? Learn more by following the steps in this document:Universal Vehicle Laptop Mount Compatibility Guide Depending on your vehicle, some installations may limit the adjustability of the passenger seat. |
Instructions | Tough-Tray Assembly Guide RAM-VB-196 Upper Tele-Pole Assembly Guide |
Documents | Vehicle Compatibility Guide |
