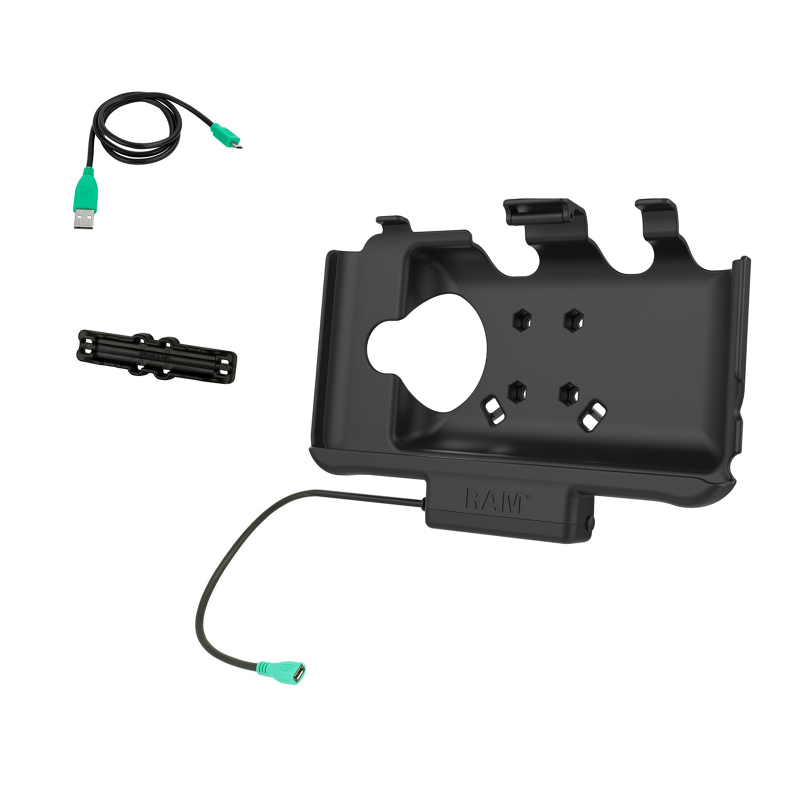

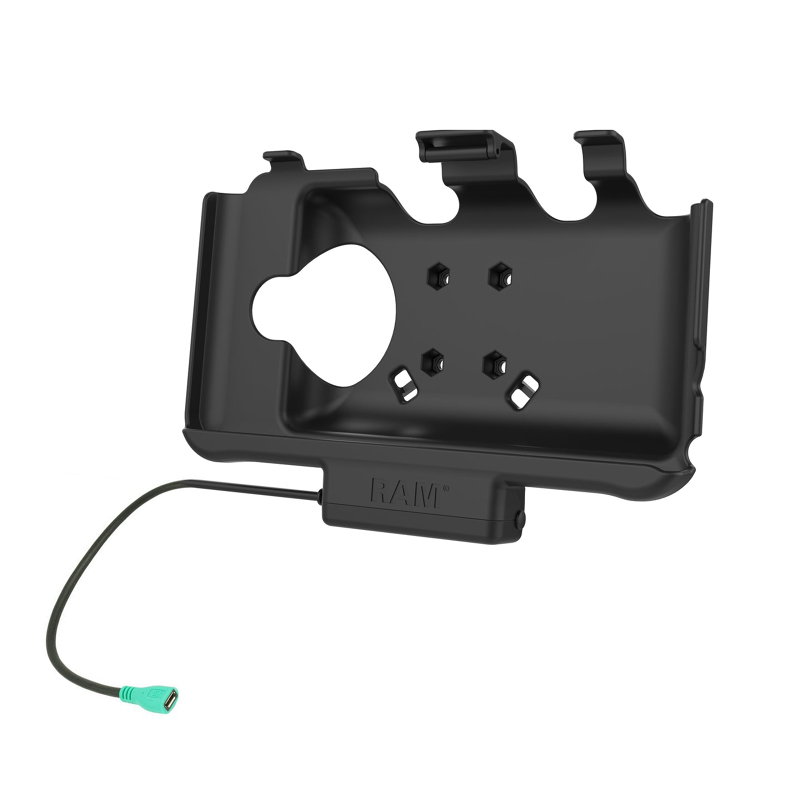

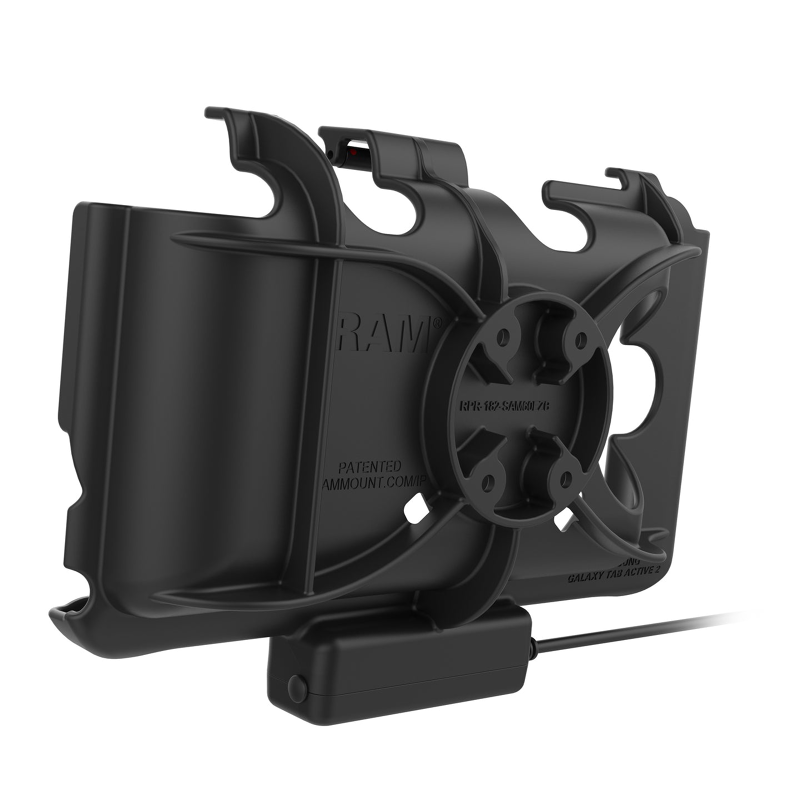

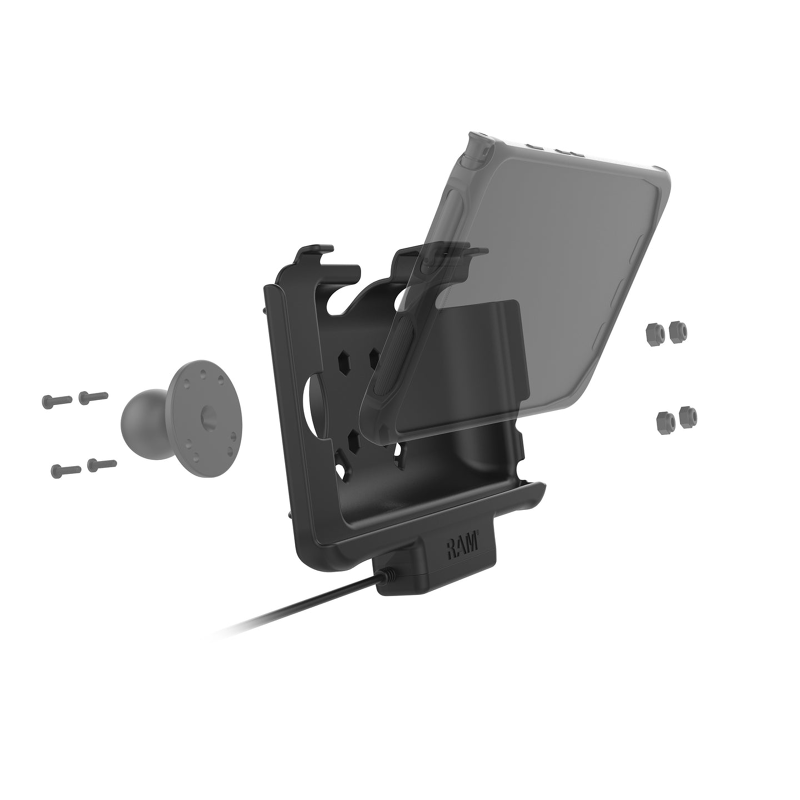

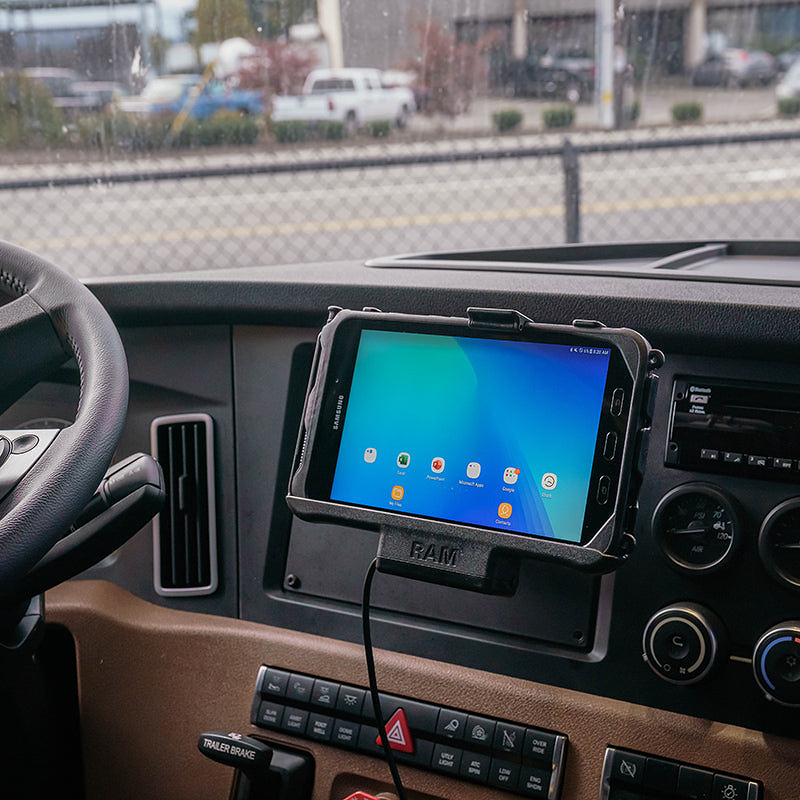

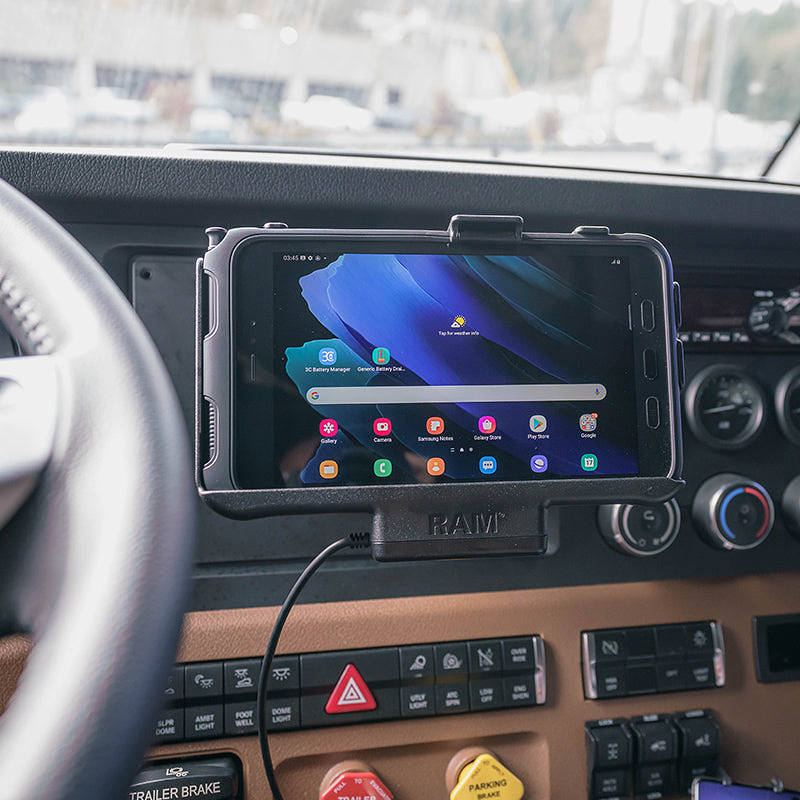

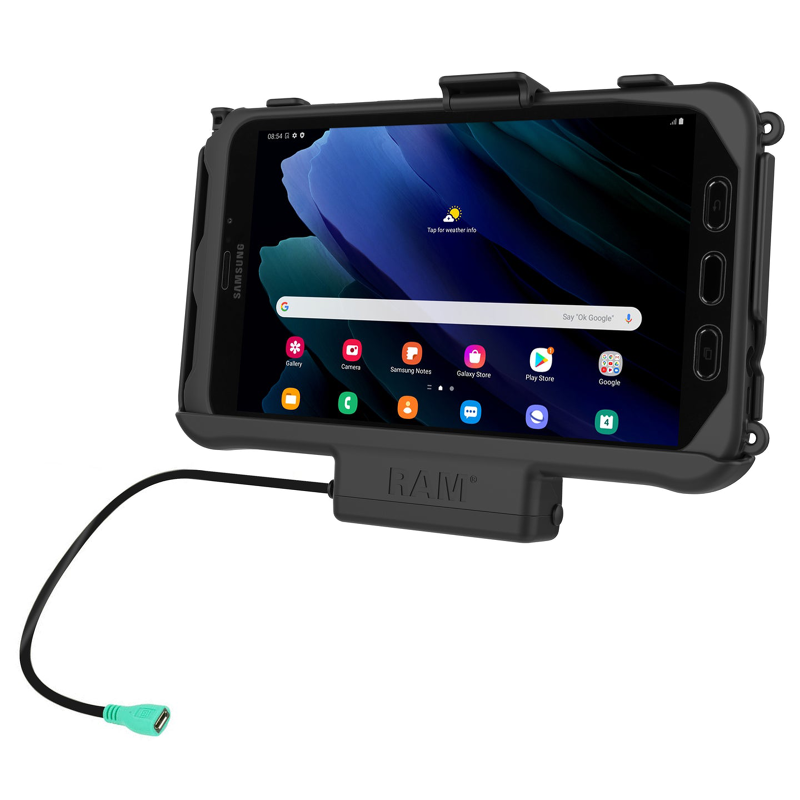

This powered cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. This cradle is also compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the mUSB female pigtail, GDS® USB 2.0 cable, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V7BU hardwire charger or the RAM-GDS-CHARGE-USB2QCCIG cigarette vehicle charger for supplying power.
FEATURES

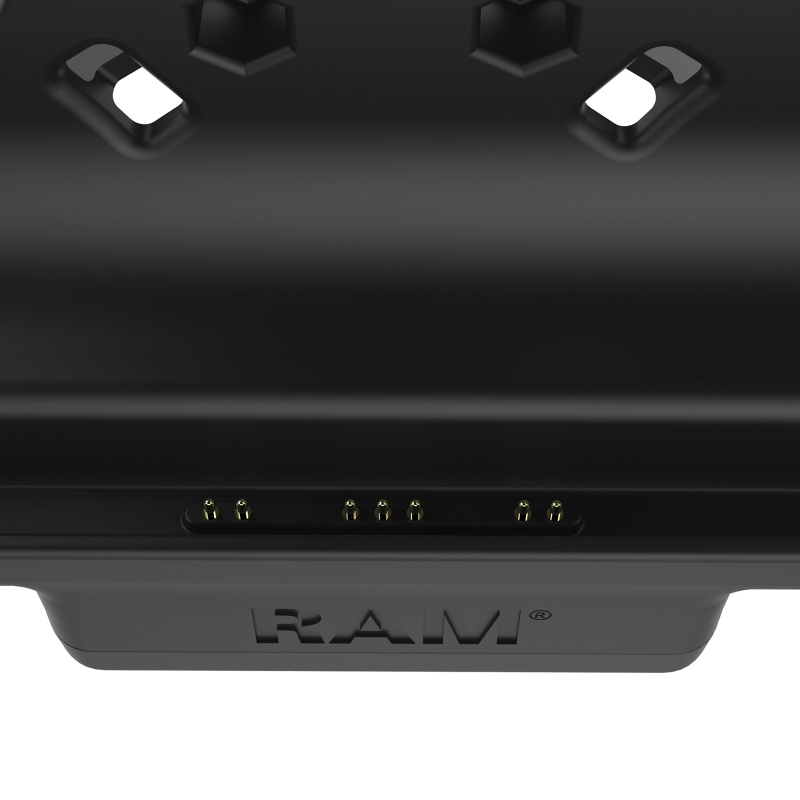

- RAM® EZ-Roll'r™ Powered form-fit cradle provides charging capabilities for the Samsung Galaxy Tab Active3 and Tab Active2 through integrated pogo pin connector and mUSB cable
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
Technical info
| Hardware included | (4) #8-32 x 5/8" Machine Screws(4) #8-32 Nylock Nuts(1) GDS® Genuine USB 2.0 Straight Cable(1) Optional Cable Clamp Housing(2) Large Cable Ties(5) Small Cable Ties |
|---|---|
| Product dimensions | Width: 9.24"Height: 6.34"Depth: 2.57" |
| Hole pattern | 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging type | Poly Bag |
| Input voltage | 4.4VDC - 5.4VDC (USB power source dependent) |
| Output voltage | 4.4VDC - 5.4VDC (USB power source dependent) |
| Input connector | mUSB Female |
| Warranty | 3 year warranty |
| Weight | 0.71 lb |
| Additional Information | This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here. |
| Documents | Sell Sheet On Road Catalog Samsung Mounting Solutions Catalog |
