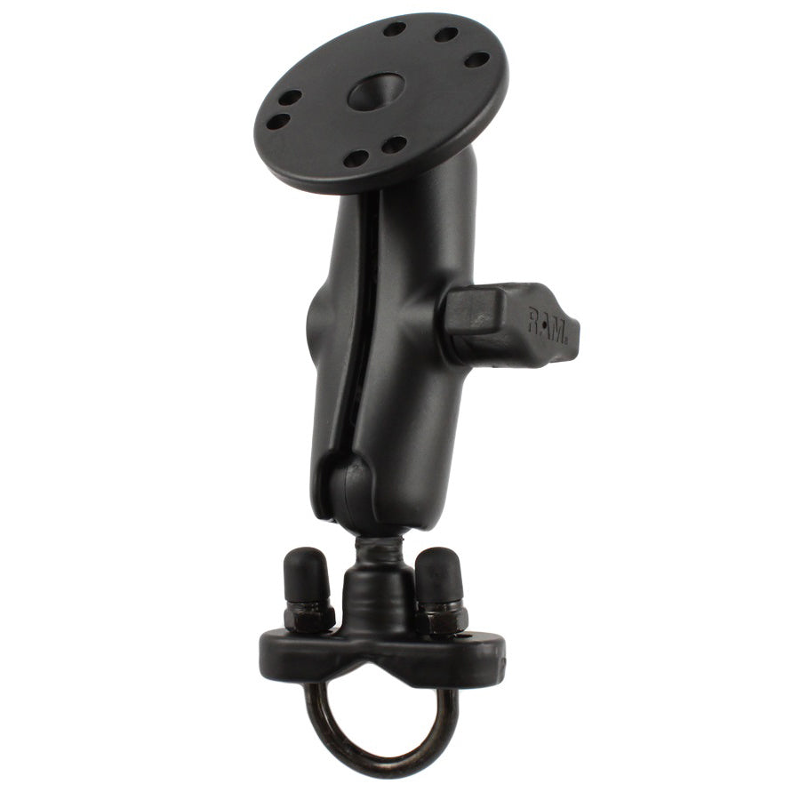

RAM Handlebar U-Bolt Double Ball Mount with Round Plate - B Size Medium / RAM-B-149Z-202U
29,75 €
tax excl. 21%
More info
FEATURES- 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty

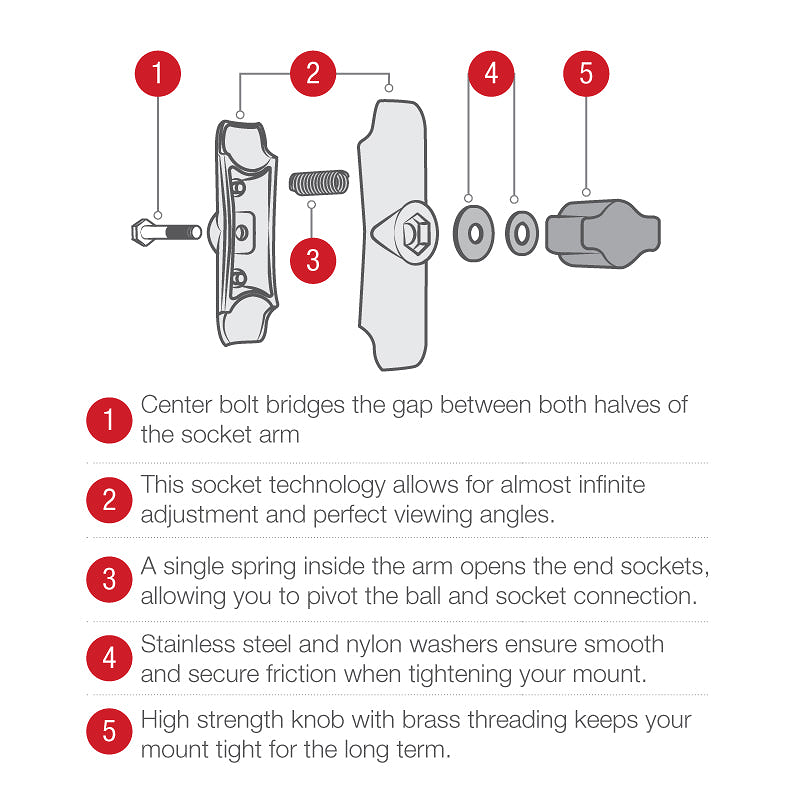

| Overview | The RAM-B-149Z-202U consists of a zinc coated u-bolt base, double socket arm and round base adapter. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5”. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. |
|---|---|
| Hardware included | (1) 1/4"-20 U-Bolt for .5" - 1" Rails(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails(2) 1/4"-20 Nylock Nuts(2) Rubber Caps(1) U-Bolt Spacer |
| Clamp range | .5" - 1.25" diameter |
| Socket to socket length | 3" |
| Hole pattern | 4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter |
| Ball size | B Size (1") |
| Weight capacity | Standard Use: 2 lbsHeavy-Duty Use: 1 lb |
| Materials | Marine-grade aluminumHigh strength composite |
| Packaging type | Poly Bag |
| Weight | 0.65 lb |
| Instructions | RAM® U-Bolt Base Assembly Guide |
| Documents | Drawing File - U-Bolt Ball Base |
