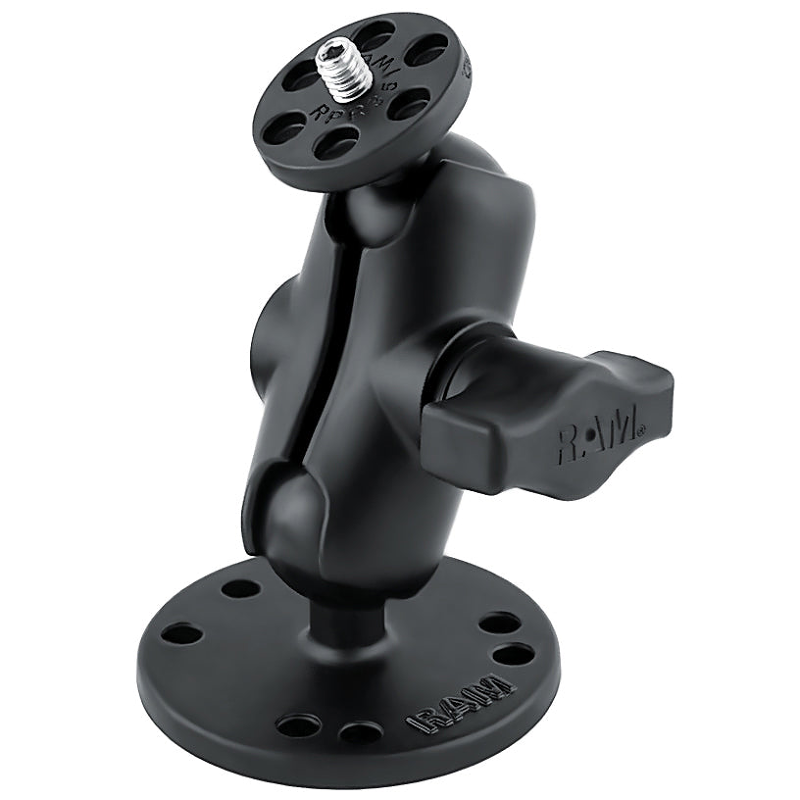

Overview | The RAM-B-202-A-366U consists of a 2.5" diameter round base that contain the universal AMPS hole pattern, SHORT double socket arm and 1" ball, connected to a round plate with 1/4"-20 camera thread. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders, digital cameras and POV cameras. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. |
---|---|
Socket to socket length | 1.75" |
Hole pattern | 4-Hole AMPS: 1.181" x 1.496"3-Hole 120-Degree: 1.812" Diameter |
Plate size | 2.5" Diameter |
Ball size | B Size (1") |
Weight capacity | Standard Use: 2 lbsHeavy-Duty Use: 1 lb |
Materials | Marine-grade aluminumHigh strength composite |
Packaging type | Poly Bag |
Weight | 0.38 lb |
