Hollyland Cosmo 1200 Wireless HDMI/3G-SDI

More info

Hollyland Cosmo 1200Plus allows you to transmit an HDMI/SDI signal up to 1200' line-of-sight to an HDMI or dual SDI outputs. The transmitter/receiver set supports up to 1080p60 signals with a latency of <1ms. The transmitter offers one HDMI and one SDI input, one 3.5mm stereo audio input, and one SDI loop-through output. The receiver offers two SDI and one HDMI output.

The system operates on the 5.1 to 5.9 GHz frequency band and is encrypted to prevent video leakage - only the matched receiver shows clear images; unmatched units are unable to receive video, even when on the same frequency. The system supports RSSI (received signal strength indicator) and has multi-channel selection, which allows you to choose the cleanest channel for transmission. Both units also feature a bright, easy-to-read OLED display.

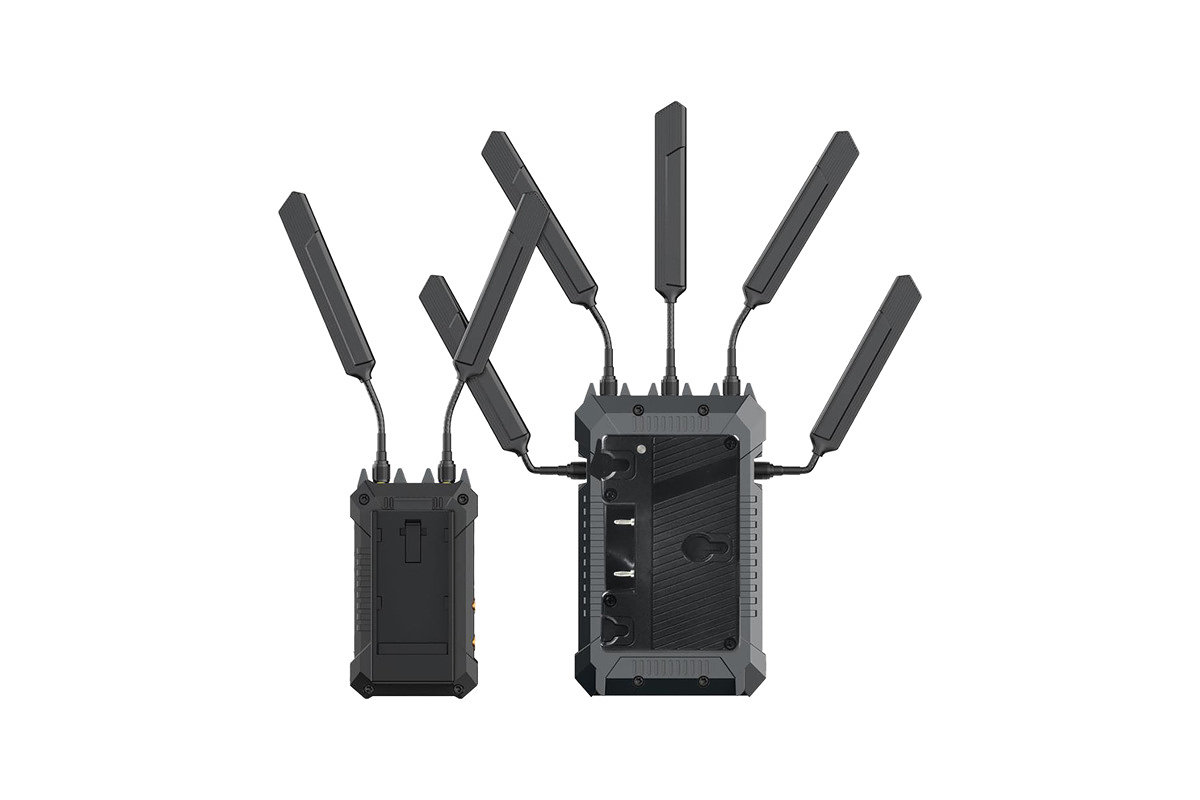

The transmitter is designed to be powered via an L-series battery plate or a 2-pin LEMO connector, and the receiver features a Gold mount battery plate and a 2-pin LEMO connector. Two D-Tap to LEMO cables are included to provide the flexibility to power both units via a cable connection to separately available, compatible batteries. The transmitter uses two antennas and the receiver, five antennas. All seven plus a spare are included, and two mushroom antennas are also supplied as replacements for the transmitter antennas.

Technical info

• Transmit up to a 1080p60 HDMI/SDI signal to an HDMI or dual SDI outputs
• 1200' line-of-sight transmission with <1ms latency
• Optimized to successfully handle playback on the ALEXA Mini without waiting
• Encrypted to prevent video leakage; only the matched receiver shows clear images, while unmatched receivers are unable to even when on the same frequency
• SDI loop-through out
• 3.5mm stereo audio input
• 5.1-5.9 GHz frequency band
• AES-128 encryption
• OLED screen
• Smart cooling fan
• Transmitter: 2-pin LEMO power connector
• Receiver: 4-pin LEMO connector
• D-Tap to LEMO cables
