EcoFlow Power Microinverter Stream / 800w AC+PV

More info

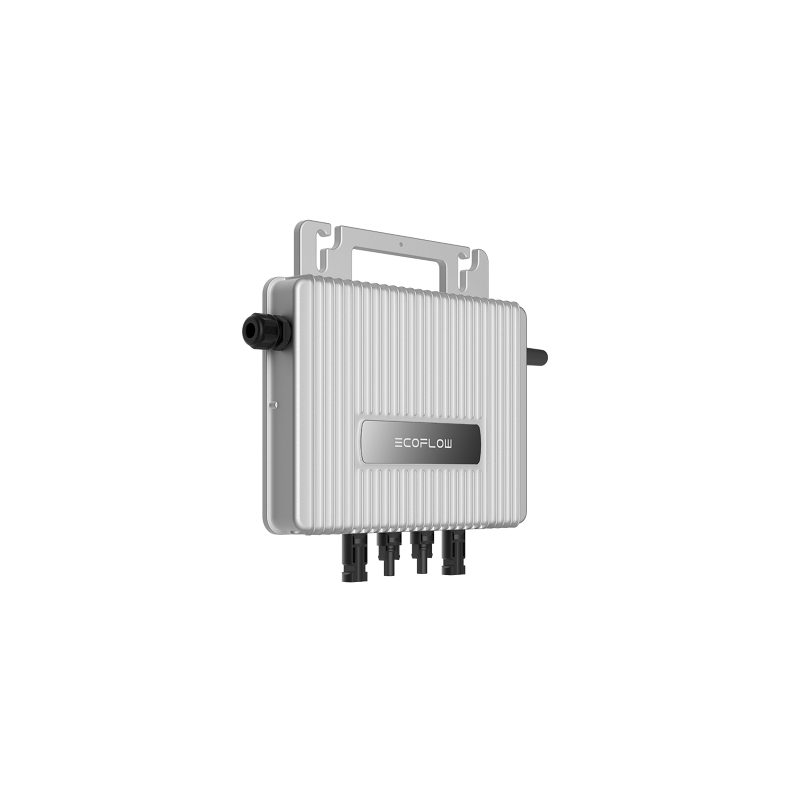

EcoFlow STREAM Microinverter / 800W AC+PV is a high-efficiency power conversion unit engineered for residential solar setups. It converts DC power from solar panels directly into usable AC electricity for your home. Designed for seamless integration with most rooftop, balcony, and plug-and-play PV systems, it operates reliably even in low-light conditions, activating from as little as 3 W of solar input.

With IP67 protection, two MPPT inputs, and wide module compatibility, the STREAM Microinverter supports flexible installations and stable performance throughout the day. When connected to the EcoFlow app, users gain advanced energy management, real-time generation monitoring, and smart automation features powered by Eco-AI. The system also supports third-party smart meters, enabling full visibility over household energy usage

Technical info

 MPPT channels: 2

• Max input power per channel: 600 W

• Max DC input voltage: 65 V DC

• Start-up voltage: 20 V

• MPPT voltage range: 16–60 V DC

• Max current per MPPT: 16 A

• Short-circuit current per MPPT: 16 A

• Rated grid output power: 800 VA

• Max grid output current: 3.48 A

• Rated voltage: 230 VAC

• AC voltage range: 183–276 VAC

• Frequency range: 45–55 Hz / 55–65 Hz

• Protection rating: IP67

• Operating temperature: –40 °C to 65 °C

• WiFi connectivity: 2.4 GHz (monitoring and control via EcoFlow App)

• Smart features: AI-TOU mode, AI Power Prediction, automation routines (some functions require EcoFlow premium subscription)

• Weight: 3.2 kg

• Dimensions: 252 × 180 × 35 mm

Box contains

1x EcoFlow STREAM Microinverter (800W)

4x STREAM Solar Panel Extension Cable (2.95 m)

1x STREAM BKW AC Cable

1x Set of expansion screws with pipes

1x Safety Instructions

1x Installation Guide

1x Warranty Card
