DJI Power 1kW Super Fast Car Charger

During your ride, the DJI Power 1kW Super Fast Car Charger can utilize the excess electricity from the car's alternator to quickly recharge DJI Power 1000/2000/1000 V2. It can reach 1024 Wh of power during a drive of approximately 78 minutes, and 2048 Wh in 145 minutes.

Overview

During your ride, the DJI Power 1kW Super Fast Car Charger can utilize the excess electricity from the car's alternator to quickly recharge DJI Power 1000/2000/1000 V2 and expansion battery at up to 1000 W*. It can reach 1024 Wh of power during a drive of approximately 78 minutes**, and 2048 Wh in 145 minutes**, thereby expanding the capacity of your car's electrical system. It can also connect to the car battery and reverse-charge it with DJI Power 1000/2000/1000 V2 to prevent battery drain***, achieving intelligent two-way charging and capacity expansion of the car battery.

* At ambient temperatures between 0° to 45° C (32° to 113° F), the 1kW Super Fast Car Charger can recharge DJI Power 1000/2000/1000 V2 at a maximum power of 1000 W via the car's alternator. Data was tested in a controlled laboratory environment.

** Measured at an ambient temperature of 25° C (77° F) when the 1kW Super Fast Car Charger connects to a 12V or 24V car system and recharges either DJI Power 1000/1000 V2 and a DJI Power Expansion Battery 2000 together, or DJI Power 2000 independently, at a maximum power of 1000 W. The expansion battery is sold separately.

*** The 1kW Super Fast Car Charger can stabilize the car battery voltage at 13.5 V. Depending on the voltage status, it can either recharge DJI Power 1000/2000/1000 V2 (when the voltage is above 13.5 V) or supply power from DJI Power 1000/2000/1000 V2 to the car battery (when the voltage is below 13.5 V).

Tips

* Hybrid and fully electric vehicles are currently not compatible with the DJI Power 1kW Super Fast Car Charger, due to differences in generator operation compared to traditional fuel-powered vehicles.

1. The 1kW Super Fast Car Charger is suitable for 12V or 24V car systems. The input voltage of the car charging terminals must not exceed 45 V.

2. After installation in the car, organize and secure the wiring, and ensure all terminal screws are fixed, before driving the vehicle.

3. When installing the cables, it is recommended to first secure the cables of the 1kW Super Fast Car Charger, and then connect the fuse and cables of the car battery, in order to avoid short circuits, which could result in damage to the equipment.

4. The 1kW Super Fast Car Charger is not water or dust-resistant. Take precautions against any exposure to water or dust during installation.

5. To protect your car’s circuitry, the DJI Power 1kW Super Fast Car Charger is set to a default charging power of 500W. You can increase this to 1000W in the app if needed. When using it with DJI Power 1000, the DJI Power Dongle is required to connect to the app.

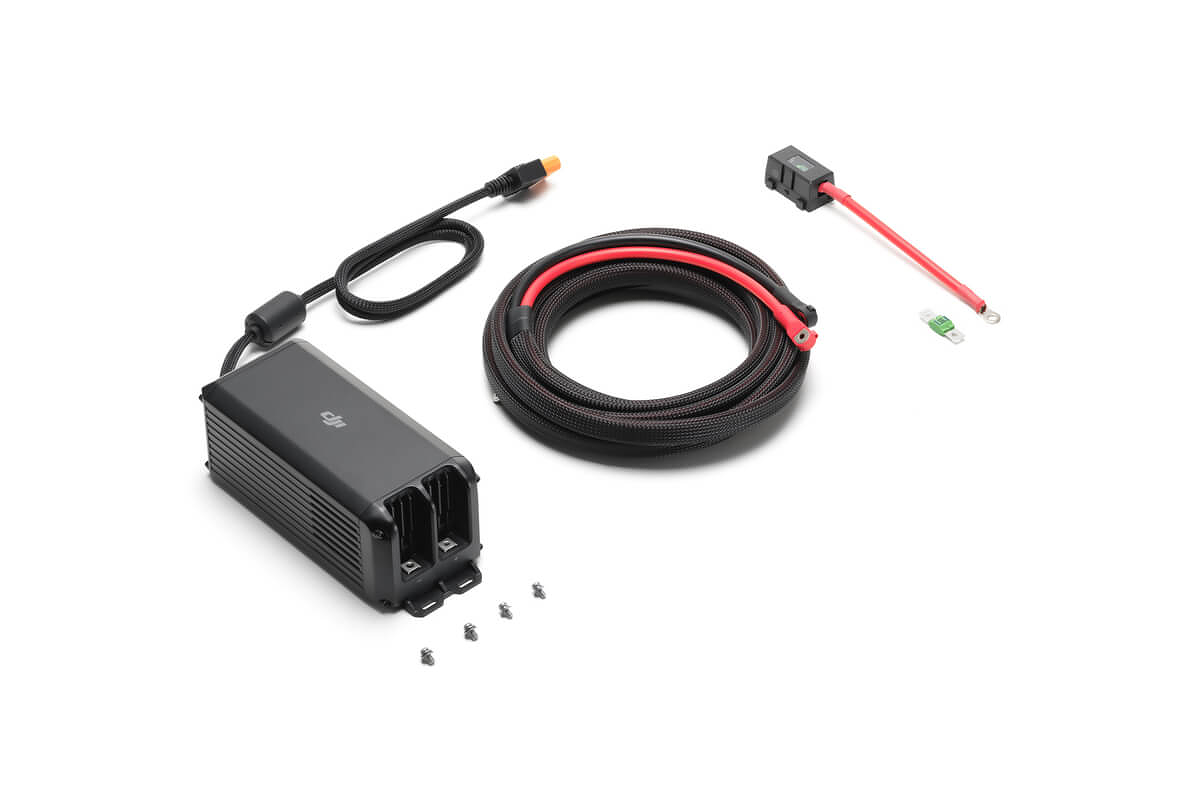

In The Box

DJI Power 1kW Super Fast Car Charger × 1

DJI Power 1kW Super Fast Charger 70A Car Charging Cable × 1

Fuse Box × 1

Fuse (100 A) × 1

M5 Screw × 1

M4 Screw × 1

Specifications

Weight: Approx. 1.25 kg

Dimensions: 235×93×83.5 mm (L×W×H)

Ports/cables:

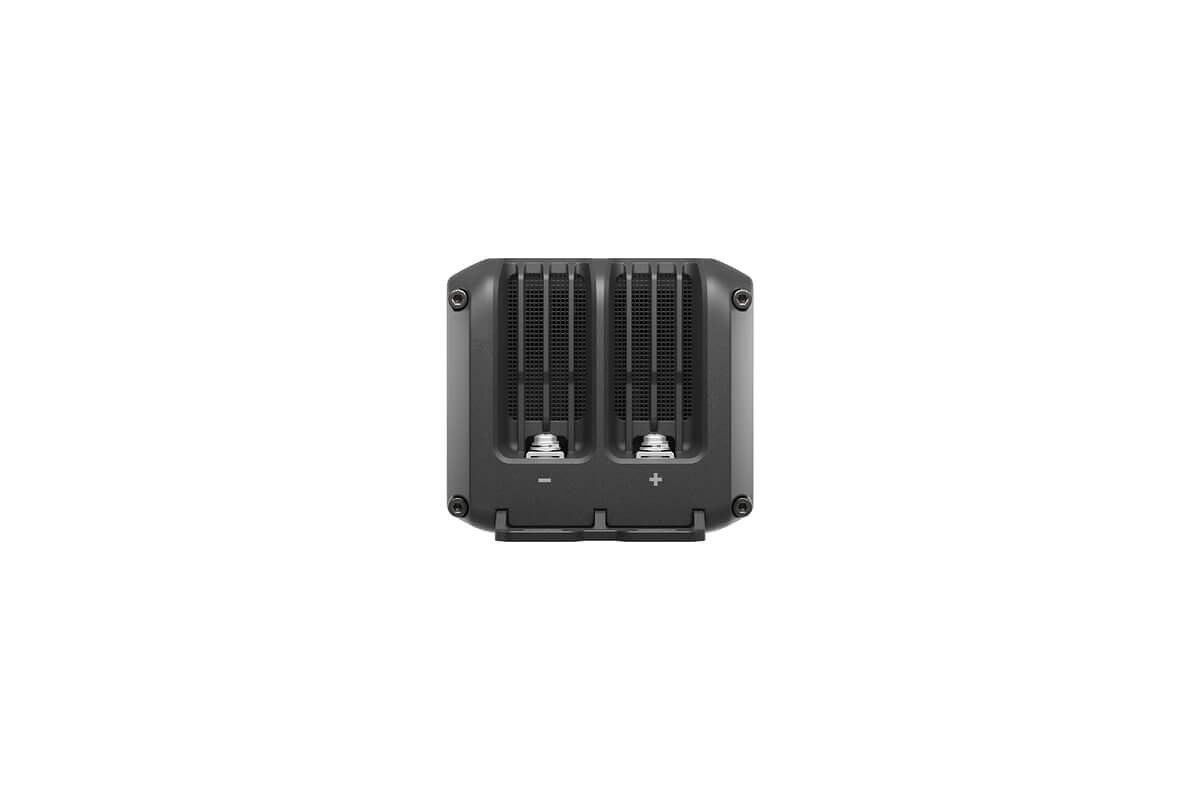

Car Charging Terminals (Positive Terminal and Negative Terminal) × 1 pair

SDC Cable × 1

Input:

Car Charging Terminals (Input): 12-45 V, max current: 70 A, max power: 1000 W*

SDC Port (Output): 40-58.4 V

* Measured at an ambient temperature of 25° C (77° F) when connected to a 12V car system with an input of 14.3 V and 70 A.

Output (Power Supply, Car Charging):

SDC Port (Input): 40-58.4 V

Car Charging Terminals (Output):

12V Car System: 11-14.4 V, 1000W max power*

24V Car System: 22-28.8 V, 1000W max power*

* At an ambient temperature of 25° C (77° F), it can recharge DJI Power 1000/2000/1000 V2 at a maximum output power of 1000 W via the car's alternator.

Charging Temperature: 0° to 45° C (32° to 113° F)

Power Supply Temperature: -10° to 45° C (14° to 113° F)

Car Charging Cable Length: 5 m

Compatibility

DJI Power 1000 V2

DJI Power 2000

DJI Power 1000

DJI Power 1kW Super Fast Car Charger.

During your ride, the DJI Power 1kW Super Fast Car Charger can utilize the excess electricity from the car's alternator to quickly recharge the Power 1000 and expansion battery at up to 1000 W, reaching 1024 Wh of power during a drive of approximately 78 minutes, expanding the capacity of your car's electrical system. It can also connect to the car battery and reverse-charge it with Power 1000 to prevent battery drain, achieving intelligent two-way charging and capacity expansion of the car battery.
